Standard Stile and Rail Doors

200 Narrow Stile

Learn More

• 2 1/8" stile
• 2 7/8" top rail
• 3 5/16" standard bottom rail
• 10" optional bottom rail
• 1/4" to 1" infill
• 1 3/4" thickness

351 Medium Stile

Learn More

• 3 1/2" stiles
• 3 5/16" top rail
• 6" standard bottom rail
• 10" optional bottom rail
• 1/4" to 1" infill
• 1 3/4" thickness

452 Wide Stile

Learn More

• 4 1/2" stiles
• 4 1/2" top rail
• 6" standard bottom rail
• 10" optional bottom rail
• 1/4" to 1" infill
• 1 3/4" thickness

ThermalClad Stile and Rail Doors

351 Thermal Clad

Learn More

• 3 1/2" stiles
• 3 5/16" top rail
• 6" standard bottom rail
• 10" optional bottom rail
• 1" infill
• 2" thickness

452 Thermal Clad

Learn More

• 4 1/2" stiles
• 4 1/2" top rail
• 6" standard bottom rail
• 10" optional bottom rail
• 1" infill
• 2" thickness

Monumental Stile and Rail Doors

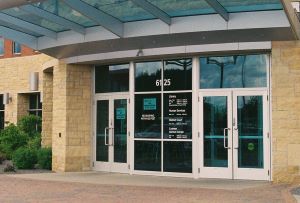

400 HD

Learn More

• 4" stiles and top rail
• 6 1/2" standard bottom rail
• 10" optional bottom rail
• 1/4" to 1" infill
• 2" thickness
• 3/16" wall thickness

500 HD

Learn More

• 5" stiles and top rail
• 6 1/2" standard bottom rail
• 10" optional bottom rail
• 1/4" to 1" infill
• 2" thickness
• 3/16" wall thickness

Custom Series Doors

Series 4000 Plank

Learn More

• 4" hinge and lock stiles
• 4" intermediate planks
• Top and bottom cap
• Bold Line Surface
• Insulation

Series 8000 FRP

Learn More

• 4" internal stiles and rails
• Grey or bronze FRP panel
• 1 1/2" insulation core

Series 9000 Flush Aluminum

Learn More

• 4" internal stiles and rails
• .063" smooth aluminum sheet
• .050" backer board sheet
• 1 1/2" insulation core

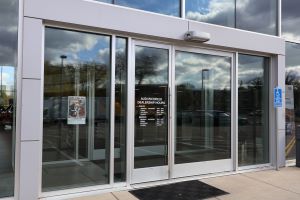

Auto Showroom

Learn More

• Add to standard 200, 351, 452 doors
• Includes 1 7/8" muntin and skid plate on larger door
• Max overall width is 108"
• Max inactive door width is 66"

Elephant Doors

Learn More
